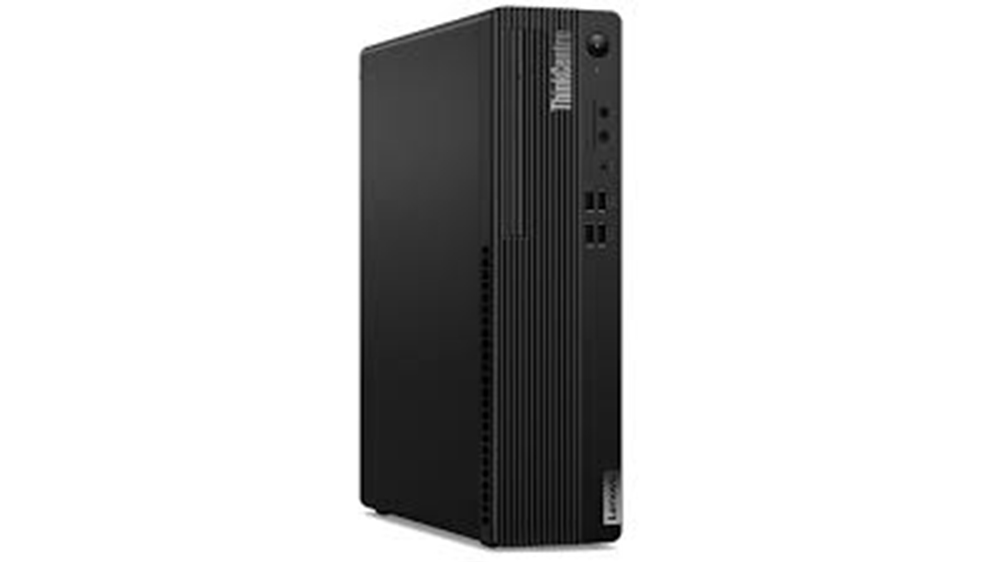

LENOVO M70s i7-12700 11TC001SGR
د.إ3,400.00د.إ3,500.00 (-3%)
Brand | Lenovo |
Model name | M70S |
RAM | 8GB DDR4 |
SSD | 512 GB M.2 |
CPU model | i7-12700 |
Installed RAM memory size | 16 GB |
Operating system | Windows 11 Pro |
CPU speed | 1.8 GHz |
WARRANTY | 3Yr On-site |
SKU | 11TC001SGR |
LENOVO M70s i7-12700 11TC001SGR
1. Optical drive * 10. Flex IO *
2. Power button 11. HDMI 2.1 TMDS
3. Microphone (3.5mm) 12. 2x DisplayPort 1.4
4. Card reader * 13. 4x USB 2.0
5. Headphone / microphone combo jack (3.5mm) 14. 2x PS/2 ports (keyboard / mouse) *
6. USB-C 3.2 Gen 1 15. Ethernet (RJ-45)
7. 2x USB 3.2 Gen 1 16. Optional ports on expansion cards *
8. 2x USB 3.2 Gen 2 17. Power connector
9. Line-out (3.5mm)
Notes:
• Items with * are only available on selected models
• More ports are available through the optional expansion cards (not shown on the sample product above)
ThinkCentre M70s Gen 3
PSREF
Product Specifications
Reference
ThinkCentre M70s Gen 3 – July 20 2023 1 of 9
PERFORMANCE
Processor
Processor Family
Intel® Pentium® or 12th Generation Intel Core™ i3 / i5 / i7 / i9 Processor
Processor**
Processor
Name Cores Threads Base Frequency Max Frequency Cache Processor
Graphics
Pentium Gold
G7400 2 4 3.7GHz – 6MB Intel UHD
Graphics 710
Core i3-12100 4 (4 P-core +
0 E-core) 8 P-core 3.3GHz P-core 4.3GHz[1] 12MB Intel UHD
Graphics 730
Core i3-12300 4 (4 P-core +
0 E-core) 8 P-core 3.5GHz P-core 4.4GHz[2] 12MB Intel UHD
Graphics 730
Core i5-12400 6 (6 P-core +
0 E-core) 12 P-core 2.5GHz P-core 4.4GHz[3] 18MB Intel UHD
Graphics 730
Core i5-
12400F
6 (6 P-core +
0 E-core) 12 P-core 2.5GHz P-core 4.4GHz[4] 18MB –
Core i5-12500 6 (6 P-core +
0 E-core) 12 P-core 3.0GHz P-core 4.6GHz[5] 18MB Intel UHD
Graphics 770
Core i5-12600 6 (6 P-core +
0 E-core) 12 P-core 3.3GHz P-core 4.8GHz[6] 18MB Intel UHD
Graphics 770
Core i7-12700 12 (8 P-core +
4 E-core) 20 P-core 2.1GHz / Ecore 1.6GHz
Max Turbo up to 4.9GHz / P-core
4.8GHz / E-core 3.6GHz[7] 25MB Intel UHD
Graphics 770
Core i7-12700F 12 (8 P-core +
4 E-core) 20 P-core 2.1GHz / Ecore 1.6GHz
Max Turbo up to 4.9GHz / P-core
4.8GHz / E-core 3.6GHz[8] 25MB –
Core i9-12900 16 (8 P-core +
8 E-core) 24 P-core 2.4GHz / Ecore 1.8GHz
Max Turbo up to 5.1GHz / P-core
5.0GHz / E-core 3.8GHz[9] 30MB Intel UHD
Graphics 770
Core i9-
12900F
16 (8 P-core +
8 E-core) 24 P-core 2.4GHz / Ecore 1.8GHz
Max Turbo up to 5.1GHz / P-core
5.0GHz / E-core 3.8GHz[10] 30MB –
Notes:
[1], [2], [3], [4], [5], [6], [7], [8], [9], [10] Intel Max Turbo frequency will vary depending on application workload and the
hardware and software configurations, see
http://www.intel.com/technology/turboboost/ for more information.
Operating System
Operating System**
Ubuntu Linux[1] •
• Windows® 10 IoT Enterprise LTSC 2021
• Windows 11 DG Windows 10 Pro 64
• Windows 11 Home
• Windows 11 Home Single Language
• Windows 11 Pro
• No operating system
Notes:
[1] Some features may not be supported on the system with Linux preload, including but not limited to Intel RST RAID,
Human Presence Detection, etc.
Graphics
Graphics***
[1]
Graphics Type Memory Connector Max Resolution Key
Features
ThinkCentre M70s Gen 3
PSREF
Product Specifications
Reference
ThinkCentre M70s Gen 3 – July 20 2023 2 of 9
Intel UHD
graphics
710
Integrated Shared
2x DP 1.4 HBR2, 1x
HDMI® 2.1 TMDS, 1x Flex
IO (VGA / DP 1.2 / HDMI
2.1 TMDS / USB-C®)
4096×2304@60Hz(DP),
4096×2160@60Hz[HDMI / Flex IO(HDMI) / Flex
IO(DP)], 3840×2160@60Hz[Flex IO(USB-C)],
2048×1536@50Hz[Flex IO(VGA)]
DirectX® 12
Intel UHD
graphics
730
Integrated Shared
2x DP 1.4 HBR2, 1x HDMI
2.1 TMDS, 1x Flex IO
(VGA / DP 1.2 / HDMI
2.1 TMDS / USB-C)
4096×2304@60Hz(DP),
4096×2160@60Hz[HDMI / Flex IO(HD MI) /
Flex IO(DP)], 3840×2160@60Hz[Flex IO(USBC)], 2048×1536@50Hz[Flex IO(VGA)]
DirectX 12
Intel UHD
graphics
770
LENOVO M70s i7-12700 11TC001SGR
Integrated Shared
2x DP 1.4 HBR2, 1x HDMI
2.1 TMDS, 1x Flex IO
(VGA / DP 1.2 / HDMI
2.1 TMDS / USB-C)
4096×2304@60Hz(DP),
4096×2160@60Hz[HDMI / Flex IO(HD MI) /
Flex IO(DP)], 3840×2160@60Hz[Flex IO(USBC)], 2048×1536@50Hz[Flex IO(VGA)]
DirectX 12
Intel Iris®
Xe MAX
100
Discrete 2GB
LPDDR4X 2x DP 1.4 3840×2160@60Hz(DP)
DirectX 12,
OpenGL
4.6
Notes:
[1] The information of integrated graphics are not applicable for the models with processor which has no integrated
graphics inside (for the details, please refer to processor section).
Monitor Support
Monitor Support[1]
Supports up to 4 independent displays via onboard ports (2x DP, 1x HDMI, and 1x optional Flex IO), more displays support
via discrete graphics
Notes:
[1] Onboard video ports are only available for the models with integrated graphics.
Chipset
Chipset
Intel Q670 chipset
Memory
Max Memory[1]
Up to 128GB DDR4-3200
Memory Slots
Four DDR4 DIMM slots, dual-channel capable
Memory Type
DDR4-3200
Notes:
[1] The max memory is based on the test results with current Lenovo® memory offerings.
Storage
LENOVO M70s i7-12700 11TC001SGR
Storage Support[1][2]
Up to three drives, 1x 2.5″/3.5″ HDD + 1x 2.5″ HDD + 1x M.2 SSD
• 2.5″ HDD up to 1TB each
• 3.5″ HDD up to 2TB
• M.2 SSD up to 2TB
Storage Type***
Disk Type Interface RPM Security
2.5″ SATA HDD SATA 6Gb/s 7.2K –
3.5″ SATA HDD SATA 6Gb/s 7.2K –
M.2 2242 SSD PCIe® NVMe®, PCIe 3.0 x4 – –
M.2 2280 SSD PCIe NVMe, PCIe 3.0 x4 – Opal
ThinkCentre M70s Gen 3
PSREF
Product Specifications
Reference
ThinkCentre M70s Gen 3 – July 20 2023 3 of 9
M.2 2280 SSD PCIe NVMe, PCIe 4.0 x4 Performance – Opal 2.0
M.2 2280 SSD PCIe NVMe, PCIe 4.0 x4 Value – Opal 2.0
RAID
RAID 0/1 support for HDDs (RAID preset only available via special bid models)
Notes:
[1] The max capacity of each disk type is based on the test results with current Lenovo storage offerings.
[2] The max capacity of SSD/HDD is based on the test results with current Lenovo SSD/HDD offerings.
Removable Storage
Optical**
• DVD-ROM, SATA connector, slim (9.0mm)
• DVD burner (DVD±RW), SATA connector, slim (9.0mm)
• None
Card Reader
• 3-in-1 card reader (SD, SDHC, SDXC)
• No card reader
Multi-Media
Audio Chip
High Definition (HD) Audio, Realtek® ALC897Q-CG codec
Speakers
Single speaker, 1W x1
Power Supply
Power Supply**
Power Type Efficiency Key Features
180W Fixed 85% 100-240V, 50-60Hz
260W Fixed 90% 100-240V, 50-60Hz
310W Fixed 92% 100-240V, 50-60Hz
380W Fixed 92% 100-240V, 50-60Hz
DESIGN
LENOVO M70s i7-12700 11TC001SGR
Input Device
Keyboard**
• Lenovo Calliope Keyboard (USB connector), black
• Lenovo Calliope Wireless Keyboard (2.4GHz via USB receiver), black
• Lenovo Traditional Keyboard (USB connector), black
• No keyboard
Mouse**
• Lenovo Calliope Mouse (USB connector), black
• Lenovo Calliope Wireless Mouse (2.4GHz via USB receiver), black
• Lenovo Mouse (PS/2 connector), black (only available via special bid)
• Lenovo Fingerprint Mouse (USB connector), Windows Hello support, black (EOL on Jan, 2023)
• No mouse
Mechanical
Form Factor
SFF (8.2L)
Dimensions (WxDxH)[1]
92.5 x 297.7 x 339.5 mm (3.6 x 11.7 x 13.4 inches)
Weight[2]
ThinkCentre M70s Gen 3
PSREF
Product Specifications
Reference
ThinkCentre M70s Gen 3 – July 20 2023 4 of 9
Around 5.3 kg (11.7 lbs)
Case Color
Black
Bays[3]
• 1x 2.5″ disk bay
• 1x 3.5″ disk bay
• 1x slim ODD bay
Expansion Slots
• One PCIe 4.0 x16, low-profile, length ≤ 155mm, height ≤ 70mm
• Two PCIe 3.0 x1, low-profile, length ≤ 155mm, height ≤ 70mm
• Two M.2 slots (one for WLAN, one for SSD)
EOU
Toolless cover, disk, optical, extension card assembly / removal
Stand
• Vertical stand
• No stand
Others
• (Optional) Dust filter
• (Optional) Smart Cable (USB-A to USB-C)
• Supports Smart Power On
Notes:
[1] The system dimensions may vary depending on configurations.
[2] The system weight is approximate and based on results in Lenovo lab, which varies depending on the source of
component, variance of the distribution of each component, and manufacturing process. It may not be the exact weight
for each specific model.
[3] 2.5″ HDD tray is optional, or comes with 2.5 HDD. 3.5″ bay supports 2.5″ / 3.5″ HDD, 3.5″ to 2.5 converter comes with
2nd 2.5″ HDD.
CONNECTIVITY
Network
Onboard Ethernet
Gigabit Ethernet, Intel Ethernet Connection I219-LM, 1x RJ-45, supports Wake-on-LAN
Optional Ethernet***
• Gigabit Ethernet, Bitland BN8E88, 1x RJ-45, PCIe x1
• Gigabit Ethernet, Bitland RTL8168H, 1x RJ-45, PCIe x1
• 2.5 Gigabit Ethernet, Realtek RTL8125BGS, 1x RJ-45, PCIe x1
• No optional Ethernet
WLAN + Bluetooth®**
• Realtek RTL8822CE, 802.11ac Dual Band 2×2 Wi-Fi® + Bluetooth 5.0, M.2 card
• Intel Wireless-AC 9560, 802.11ac Dual Band 2×2 Wi-Fi + Bluetooth 5.1, M.2 card
Realtek Wi-Fi 6 RTL8852BE, 802.11ax Dual Band 2×2 Wi-Fi + Bluetooth 5.1, M.2 card[1] •
Intel Wi-Fi 6 AX201, 802.11ax 2×2 Wi-Fi + Bluetooth 5.1, M.2 Card[2] •
Intel Wi-Fi 6E AX211, 802.11ax 2×2 Wi-Fi + Bluetooth 5.1, Intel vPro® technology support, M.2 Card[3] •
• No WLAN and Bluetooth
Notes:
[1], [2], [3] Bluetooth 5.2 is hardware ready but may run at a lower version due to OS limitations.
Ports[1]
Front Ports
• 1x USB-C 3.2 Gen 1 (15W charging)
• 2x USB 3.2 Gen 1
• 2x USB 3.2 Gen 2
• 1x headphone / microphone combo jack (3.5mm)
ThinkCentre M70s Gen 3
PSREF
Product Specifications
Reference
ThinkCentre M70s Gen 3 – July 20 2023 5 of 9
• 1x microphone (3.5mm)
Optional Front Ports
1x card reader
Rear Ports[2]
• 4x USB 2.0
• 1x HDMI 2.1 TMDS
• 2x DisplayPort™ 1.4a (HBR2, DSC)
• 1x Ethernet (RJ-45)
• 1x line-out (3.5mm)
Optional Rear Ports***
• 1x USB-C 3.2 Gen 1 with DisplayPort function and 5V@3A charging (Flex IO)
• 1x HDMI 2.1 TMDS (Flex IO)
• 1x DP 1.2 (Flex IO)
• 1x VGA (Flex IO)
• 2x USB 3.2 Gen 1 (via 2-port USB expansion card, PCIe x1)
• 1x parallel
• 1x serial
• 1x 2nd serial
• 4x serial (via 4-port serial expansion card, PCIe x1)
• 2x PS/2
Notes:
[1] The transfer speed of following ports will vary and, depending on many factors, such as the processing speed of the
host device, file attributes and other factors related to system configuration and your operating environment, will be
slower than theoretical speed.
USB 2.0: 480 Mbit/s;
USB 3.2 Gen 1 (SuperSpeed USB 5Gbps, formerly USB 3.0 / USB 3.1 Gen 1): 5 Gbit/s;
USB 3.2 Gen 2 (SuperSpeed USB 10Gbps, formerly USB 3.1 Gen 2): 10 Gbit/s;
USB4® 20Gbps / USB 3.2 Gen 2×2 (SuperSpeed USB 20Gbps): 20 Gbit/s;
USB4 40Gbps (USB 40Gbps): 40 Gbit/s;
Thunderbolt™ 3/4: 40 Gbit/s.
[2] For video ports on discrete graphics, please see graphics section.
Monitor Cable
Monitor Cable***
• HDMI to HDMI cable (1.5m)
• HDMI to VGA dongle
• DP to VGA dongle
• DP to dual DP dongle
• DP to DVI-D dongle
• DP to HDMI dongle
• No monitor cable
SECURITY & PRIVACY
Security
Security Chip
Discrete TPM 2.0, TCG certified
Physical Locks
• (Optional) E-lock
• (Optional) Smart Cable Clip
• Kensington® Security Slot™, 3 x 7 mm
• Padlock Loop
Chassis Intrusion Switch
• Chassis intrusion switch
• No chassis intrusion switch
Fingerprint Reader
• Touch style fingerprint reader on mouse (EOL on Jan, 2023)
• No fingerprint reader
ThinkCentre M70s Gen 3
PSREF
Product Specifications
Reference
ThinkCentre M70s Gen 3 – July 20 2023 6 of 9
BIOS Security
• Administrator password
• Power-on password
• Hard disk password
• Boot sequence control
• Boot without keyboard and mouse
• Self-healing BIOS (Level 2)
• Smart USB protection (allows keyboard / mouse only, blocks all storage devices)
• Individual USB port disablement
MANAGEABILITY
System Management
System Management**
Intel vPro Enterprise[1] •
Intel vPro Essentials[2] •
• Non-vPro
Notes:
[1], [2] Intel vPro offers a superset of DASH’s defined capabilities.
SERVICE
Warranty[1]
Base Warranty**
• 1-year courier or carry-in service
• 1-year limited onsite service
• 3-year limited onsite service
• No base warranty
Notes:
[1] The warranty upgrades may be bundled with some models, please check the “Included upgrade” column in the specific
model’s configurations. For more service extensions, please go to https://smartfind.lenovo.com/. To learn more details of
warranty policy, please access https://pcsupport.lenovo.com/warranty.
ENVIRONMENTAL
Operating Environment
Temperature
• Operating: 5°C (41°F) to 35°C (95°F)
• Storage: -40°C (-40°F) to 60°C (140°F)
Humidity
• Operating: 20% to 80%
• Storage: 10% to 90%
Altitude
• Operating: 0 m (0 ft) to 3048 m (10,000 ft)
• Storage: 0 m (0 ft) to 12192 m (40,000 ft)
CERTIFICATIONS
Green Certifications[1]
Green Certifications
• (Optional) ENERGY STAR® 8.0
(Optional) EPEAT™ Gold Registered[2] •
(Optional) EPEAT Silver Registered[3] •
ThinkCentre M70s Gen 3
PSREF
Product Specifications
Reference
ThinkCentre M70s Gen 3 – July 20 2023 7 of 9
• ErP Lot 3
• RoHS compliant
• TCO Certified 9.0
