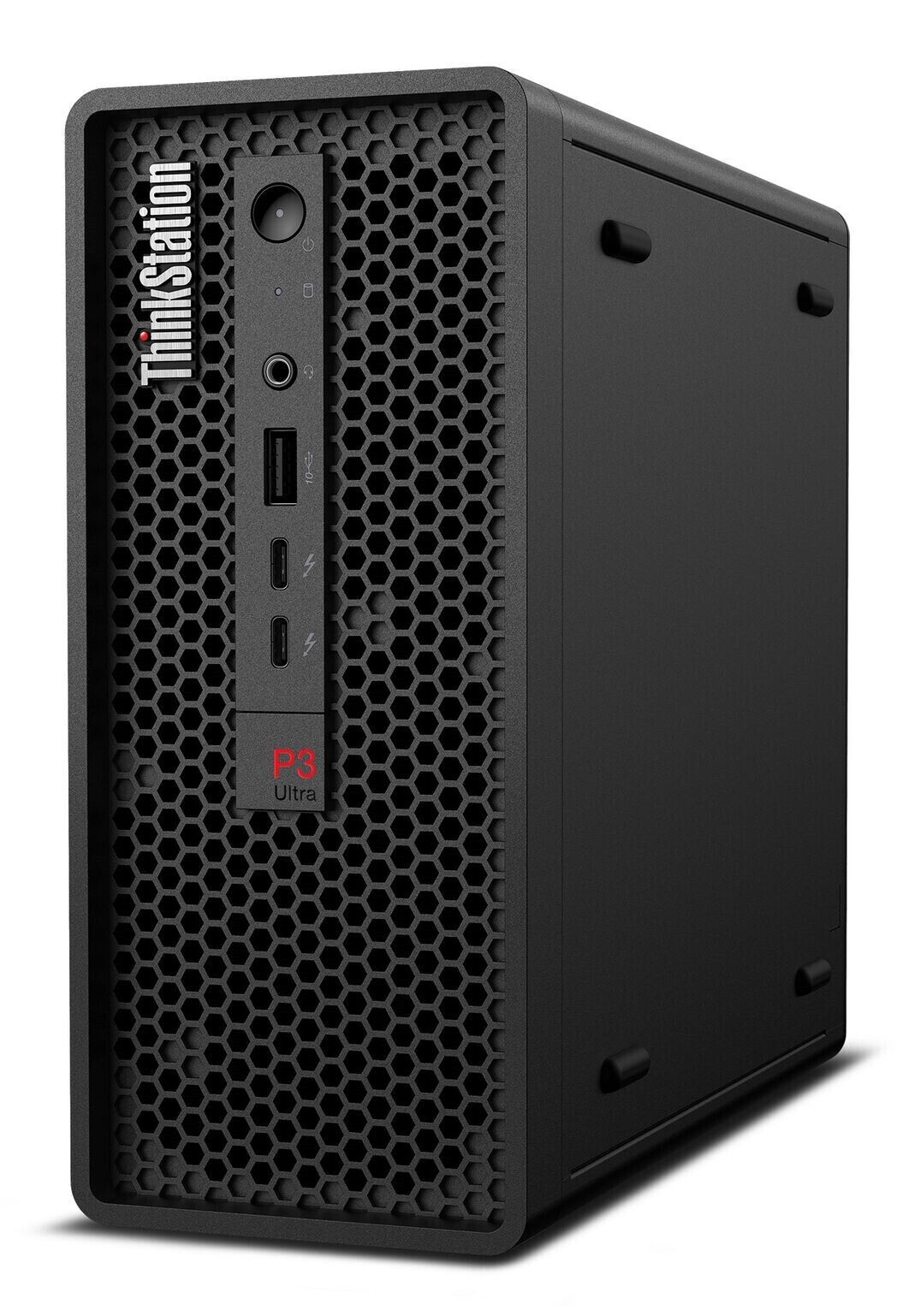

LENOVO P3 Ultra FF I7-13700 30HA000CAX
P3 Tiny Wifi + BT (2X2 AX) i5-13500T Win 11 Pro 16GB DDR5 512GB M.2 G4P TLC OPAL SSD NVIDIA T400 4GB 3 Year Onsite 30H00007AX
Description
LENOVO P3 Ultra FF I7-13700 30HA000CAX
PERFORMANCE
Processor
Processor Family
Up to one 13th Gen Intel® Core™ i3 / i5 / i7 / i9 processor, supports up to 24 cores, up to 5.6GHz
Processor**
[1]
Processor
Name Cores Threads Base Frequency Max Frequency Cache Memory
Support
Processor
Graphics
Core i3-
13100
4 (4 P-core
+ 0 E-core) 8 P-core 3.4GHz P-core 4.5GHz 12MB DDR5-
4800
Intel UHD
Graphics 730
Core i3-
13100T
4 (4 P-core
+ 0 E-core) 8 P-core 2.5GHz P-core 4.2GHz 12MB DDR5-
4800
Intel UHD
Graphics 730
Core i5-
13400
10 (6 P-core
+ 4 E-core) 16 P-core 2.5GHz /
E-core 1.8GHz
P-core 4.6GHz / E-core
3.3GHz 20MB DDR5-
4800
Intel UHD
Graphics 730
Core i5-
13400T
10 (6 P-core
+ 4 E-core) 16 P-core 1.3GHz / Ecore 1.0GHz
P-core 4.4GHz / E-core
3.0GHz 20MB DDR5-
4800
Intel UHD
Graphics 730
Core i5-
13500
14 (6 P-core
+ 8 E-core) 20 P-core 2.5GHz /
E-core 1.8GHz
P-core 4.8GHz / E-core
3.5GHz 24MB DDR5-
4800
Intel UHD
Graphics 770
Core i5-
13500T
14 (6 P-core
+ 8 E-core) 20 P-core 1.6GHz / Ecore 1.2GHz
P-core 4.6GHz / E-core
3.2GHz 24MB DDR5-
4800
Intel UHD
Graphics 770
Core i5-
13600
14 (6 P-core
+ 8 E-core) 20 P-core 2.7GHz /
E-core 2.0GHz
P-core 5.0GHz / E-core
3.7GHz 24MB DDR5-
4800
Intel UHD
Graphics 770
Core i5-
13600T
14 (6 P-core
+ 8 E-core) 20 P-core 1.8GHz / Ecore 1.3GHz
P-core 4.8GHz / E-core
3.4GHz 24MB DDR5-
4800
Intel UHD
Graphics 770
Core i7-
13700
16 (8 P-core
+ 8 E-core) 24 P-core 2.1GHz / Ecore 1.5GHz
Max Turbo up to 5.2GHz / Pcore 5.1GHz / E-core 4.1GHz 30MB DDR5-
5600
Intel UHD
Graphics 770
Core i7-
13700T
16 (8 P-core
+ 8 E-core) 24 P-core 1.4GHz / Ecore 1.0GHz
Max Turbo up to 4.9GHz /
P-core 4.8GHz / E-core
3.6GHz
30MB DDR5-
5600
Intel UHD
Graphics 770
Core i9-
13900
24 (8 P-core
+ 16 E-core) 32 P-core 2.0GHz /
E-core 1.5GHz
Max Turbo up to 5.6GHz / Pcore 5.2GHz / E-core
4.2GHz
36MB DDR5-
5600
Intel UHD
Graphics 770
Core i9-
13900T
24 (8 P-core
+ 16 E-core) 32 P-core 1.1GHz / Ecore 0.8GHz
Max Turbo up to 5.3GHz / Pcore 5.1GHz / E-core 3.9GHz 36MB DDR5-
5600
Intel UHD
Graphics 770
Processor Sockets
1x FCLGA1700
Notes:
[1] Intel Max Turbo frequency will vary depending on application workload and the hardware and software configurations,
see
http://www.intel.com/technology/turboboost/ for more information.
Operating System
Operating System**
Red Hat Enterprise Linux 9.2 (certified only, for detailed and latest information, please visit
Red Hat Certified Hardware)
LENOVO P3 Ultra FF I7-13700 30HA000CAX
• Ubuntu Linux LTS
• Windows® 11 DG Windows 10 Pro 64
• Windows 11 Home
• Windows 11 Pro
• No operating system
Graphics
Integrated Graphics**
ThinkStation P3 Tiny
PSREF
Product Specifications
Reference
ThinkStation P3 Tiny – February 02 2024 2 of 8
• Intel UHD Graphics 730
• Intel UHD Graphics 770
Discrete Graphics Support[1]
Supports up to one NVIDIA® T1000 8GB
Discrete Graphics Offering
Graphics Memory Power Connector SLI / NVLink
NVIDIA T400 4GB 4GB GDDR6 40W 3x miniDP 1.4 None
NVIDIA T1000 4GB GDDR6 50W 4x miniDP 1.4 None
NVIDIA T1000 8GB 8GB GDDR6 50W 4x miniDP 1.4 None
Notes:
[1] Discrete graphics support may vary by configurations such as processor selection or power supply wattage.
Monitor Support
Monitor Support
Onboard graphics supports up to 4 independent displays via (onboard DP, onboard HDMI®, punch out port 1 [VGA / HDMI
/ DP / USB-C®], and punch out port 2 [VGA / HDMI / DP]);
the number of maximum monitors also depends on the discrete graphic card in use
Chipset
Chipset
Intel Q670 chipset
Memory
Max Memory[1]
Up to 64GB (2x 32GB DDR5 SO-DIMM)
Memory Type
• DDR5-4800 SO-DIMM non-ECC
DDR5-5600 SO-DIMM non-ECC[2] •
Memory Slots
Two DDR5 SO-DIMM slots, dual-channel capable
Notes:
[1] The max memory is based on the test results with current Lenovo® memory offerings.
[2] System may come with DDR5-5600 memory and will run at lower speed due to platform limitations:
1x 32GB / 2x 32GB configurations run at DDR5-5200
Storage
Storage Support[1]
Up to two drives, 2x M.2 SSD, up to 2TB each
Storage Type
Disk Type Interface Offering Security
M.2 2280 SSD PCIe® NVMe®, PCIe 4.0 x4 Performance 512GB / 1TB / 2TB Opal 2.0
Storage Controllers
Storage Controller Type Interface RAID Cache
Integrated NVMe controller Standard PCIe NVMe 0/1 None
Notes:
[1] The storage capacity supported is based on the test results with current Lenovo storage offerings.
Removable Storage
Optical Support
No optical support
ThinkStation P3 Tiny
PSREF
Product Specifications
Reference
ThinkStation P3 Tiny – February 02 2024 3 of 8
Multi-Media
Audio Chip
High Definition (HD) Audio, Realtek® ALC256VB codec
Speakers**
• Single speaker
• Single speaker, premium
Power Supply
Power Supply**
Power Type Efficiency Key Features
170W Adapter 90% 100V – 240V
230W Adapter 90% 100V – 240V
300W Adapter 90% 100V – 240V
DESIGN
Mechanical
Form Factor
Tiny (1L)
Dimensions (WxDxH)[1]
Models Dimensions
Tiny only 179 x 182.9 x 37mm with rubber feet (7.0 x 7.2 x 1.5 inches with rubber feet)
Tiny & ODD 204.2 x 186.6 x 64 mm with rubber feet (8.04 x 7.35 x 2.52 inches with rubber feet)
Weight[2]
Models Weight
Tiny only 1.4 kg (3 lbs, maximum configuration)
Bays
No bays
M.2 Slots
• Two M.2 PCIe Gen 4×4 slots (for SSD)
• One M.2 slot (for WLAN)
Expansion Slots
One PCIe 4.0 x8, low-profile[3]
Notes:
[1] The system dimensions may vary depending on configurations.
[2] The system weight is approximate and based on results in Lenovo lab, which varies depending on the source of
component, variance of the distribution of each component, and manufacturing process. It may not be the exact weight
for each specific model.
[3] Supports discrete graphic card by x16 riser card (x8 signal), and supports Ethernet card / Thurderbolt 4 / serial card
by x4 riser card. Riser card comes with the expension cards.
CONNECTIVITY
Network
Onboard Ethernet
Gigabit Ethernet, Intel Ethernet Connection I219-LM, 1x RJ-45, supports Wake-on-LAN
Optional Ethernet
One additional ethernet adapter support, up to one additional 2.5GbE port
• Gigabit Ethernet, Intel I350-T2, 2x RJ-45, PCIe x4
ThinkStation P3 Tiny
PSREF
Product Specifications
Reference
ThinkStation P3 Tiny – February 02 2024 4 of 8
• Gigabit Ethernet, Intel I350-T4, 4x RJ-45, PCIe x4
• Gigabit Ethernet, Broadcom BCM5720, 2x RJ-45, PCIe x1
• Gigabit Ethernet, Broadcom BCM5719, 4x RJ-45, PCIe x4
• 2.5 Gigabit Ethernet, Realtek RTL8125BGS, 1x RJ-45, BTB
WLAN + Bluetooth®**
• Realtek Wi-Fi® 6 RTL8852BE, 802.11ax Dual Band 2×2 Wi-Fi + Bluetooth 5.1
• Intel Wi-Fi 6 AX201, 802.11ax 2×2 Wi-Fi + Bluetooth 5.1 (Bluetooth 5.2 hardware ready)
Intel Wi-Fi 6E AX211, 802.11ax 2×2 Wi-Fi + Bluetooth 5.1 (Bluetooth 5.3 hardware ready), Intel vPro® technology support[1] •
• No WLAN and Bluetooth
Notes:
[1] Bluetooth 5.3 is hardware ready but may run at a lower version due to OS limitations.
Wi-Fi 6E is only enabled on Windows 11 and operates as Wi-Fi 6 with Windows 10.
Ports[1]
Front Ports
• 1x USB-C (USB 10Gbps / USB 3.2 Gen 2), data transfer only
• 1x USB-A (USB 10Gbps / USB 3.2 Gen 2), Always On
• 1x USB-A (USB 10Gbps / USB 3.2 Gen 2)
• 1x headphone / microphone combo jack (3.5mm)
Rear Ports[2]
• 1x HDMI 2.1 TMDS
• 1x DisplayPort™ 1.4
• 1x Ethernet (RJ-45)
• 2x USB-A (USB 5Gbps / USB 3.2 Gen 1), one supports Smart Power On
• 2x USB-A (USB 10Gbps / USB 3.2 Gen 2)
Optional Rear Ports
• Punch out port 1 (one of VGA / DisplayPort / HDMI / serial / USB-C 5Gbps with DisplayPort and PD 3.0 functions)
• Punch out port 2 (one of VGA / DisplayPort / HDMI / serial / RJ-45)
• 1x Thunderbolt™ 4 (via additional PCIe adapter)
• 2x USB-A (USB 5Gbps / USB 3.2 Gen 1), occupies port 1 and 2
• 4x USB-A (USB 5Gbps / USB 3.2 Gen 1), share 5Gbps bandwidth, occupy port 1 and 2
• 2x GbE RJ-45, via additional PCIe adapter
• 4x GbE RJ-45, via additional PCIe adapter
• 4x serial, via additional PCIe adapter
Notes:
[1] The transfer speed of the ports will vary and, depending on many factors, such as the processing speed of the host
device, file attributes, and other factors related to system configuration and your operating environment, will be slower
than the theoretical speed.
[2] For video ports on discrete graphics, please see graphics section.
SECURITY & PRIVACY
Security
Security Chip
Discrete TPM 2.0, TCG certified, FIPS 140-2 certified
Physical Locks
• (Optional) Cable lock
• Kensington® Security Slot™, 3 x 7 mm
Chassis Intrusion Switch
Chassis intrusion switch
BIOS Security
• Administrator password
• Power-on password
• Hard disk password
• Boot sequence control
• Boot without keyboard and mouse
ThinkStation P3 Tiny
PSREF
Product Specifications
Reference
ThinkStation P3 Tiny – February 02 2024 5 of 8
• Certificate based BIOS management
• Cover presence switch
• Self-healing BIOS
• Smart USB protection (allows keyboard / mouse only, blocks all storage devices)
• Individual USB port disablement
MANAGEABILITY
System Management
System Management[1]
• Intel vPro Enterprise with Intel AMT 16
• Non-vPro
Notes:
[1] Intel vPro offers a superset of DASH’s defined capabilities.
SERVICE
Warranty[1]
Base Warranty**
• 1-year limited onsite service
• 2-year limited onsite service
• 3-year limited onsite service
Notes:
[1] The warranty upgrades may be bundled with some models, please check the “Included upgrade” column in the specific
model’s configurations. For more service extensions, please go to https://smartfind.lenovo.com/. To learn more details of
warranty policy, please access https://pcsupport.lenovo.com/warranty.
ENVIRONMENTAL
Operating Environment
Temperature
• Operating: 10°C (50°F) to 35°C (95°F)
• Storage: -40°C (-40°F) to 60°C (140°F)
Altitude
• Operating: 0 m (0 ft) to 3048 m (10,000 ft)
• Storage: 0 m (0 ft) to 12192 m (40,000 ft)
Humidity
• Operating: 20% to 80%
• Storage: 10% to 90%
CERTIFICATIONS
Green Certifications[1]
Green Certifications
• (Optional) ENERGY STAR® 8.0
(Optional) EPEAT™ Gold Registered[2] •
• ErP Lot 3
• RoHS compliant
• TCO Certified 9.0
Notes:
[1] The items listed under the “Green Certifications” section may not only refer to certification but also registration or selfdeclaration.
ThinkStation P3 Tiny
PSREF
Product Specifications
Reference
ThinkStation P3 Tiny – February 02 2024 6 of 8
[2] EPEAT is registered where applicable, please see epeat.net for registration status by country.
Other Certifications
Mil-Spec Test
MIL-STD-810H military test passed
ISV Certifications
ISV Certifications
Please visit ISV certifications for Lenovo Workstations
LENOVO P3 Ultra FF I7-13700 30HA000CAX
