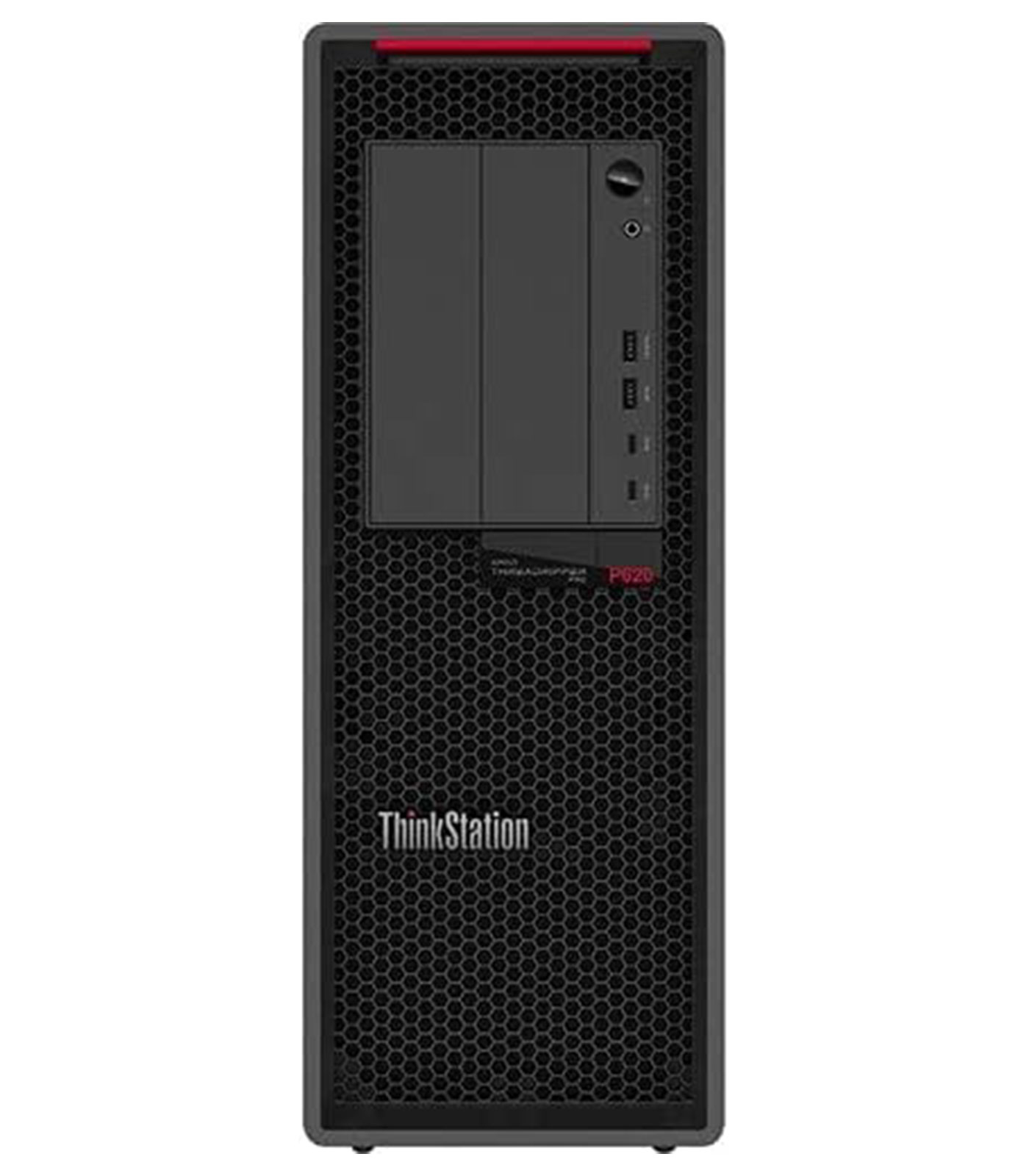

LENOVO ThinkStation P620 TOWER 30E000H0AX

PERFORMANCE
Processor
Processor Family
Up to one AMD Ryzen™ Threadripper PRO 5000 or 3000 Series Processor
Processor**
Processor Name Cores Threads Base
Frequency
Max
Frequency Cache Memory
Support
AMD Ryzen Threadripper PRO
3945WX 12 24 4.0GHz 4.3GHz 6MB L2 / 64MB L3 DDR4-3200
AMD Ryzen Threadripper PRO
3955WX 16 32 3.9GHz 4.3GHz 8MB L2 / 64MB L3 DDR4-3200
AMD Ryzen Threadripper PRO
3975WX 32 64 3.5GHz 4.2GHz 16MB L2 / 128MB
L3 DDR4-3200
AMD Ryzen Threadripper PRO
3995WX 64 128 2.7GHz 4.2GHz 32MB L2 / 256MB
L3 DDR4-3200
AMD Ryzen Threadripper PRO
5945WX 12 24 4.1GHz 4.5GHz 6MB L2 / 64MB L3 DDR4-3200
AMD Ryzen Threadripper PRO
5955WX 16 32 4.0GHz 4.5GHz 8MB L2 / 64MB L3 DDR4-3200
AMD Ryzen Threadripper PRO
5965WX 24 48 3.8GHz 4.5GHz 12MB L2 / 128MB
L3 DDR4-3200
AMD Ryzen Threadripper PRO
5975WX 32 64 3.6GHz 4.5GHz 16MB L2 / 128MB
L3 DDR4-3200
AMD Ryzen Threadripper PRO
5995WX 64 128 2.7GHz 4.5GHz 32MB L2 / 256MB
L3 DDR4-3200
Processor Sockets
1x sWRX8
Operating System
Operating System**
Red Hat Enterprise Linux 8.5 (certified only, for detailed and latest information, please visit
Red Hat Certified Hardware)
•
• Ubuntu Linux LTS
• Ubuntu Linux with Data Science Preload
• Windows® 10 Pro 64
• Windows 11 DG Windows 10 Pro 64
• Windows 11 Pro
• No operating system
Graphics
Discrete Graphics Support
Supports up to two NVIDIA® RTX 5000 Ada Generation
Discrete Graphics Offering***
Graphics Memory Power Connector Form Factor SLI / NVLink
NVIDIA T400 4GB 4GB GDDR6 40W 3x miniDP 1.4 Single slot None
NVIDIA T600 4GB GDDR6 40W 4x miniDP 1.4 Single slot None
NVIDIA T1000 4GB GDDR6 50W 4x miniDP 1.4 Single slot None
NVIDIA T1000 8GB 8GB GDDR6 50W 4x miniDP 1.4 Single slot None
NVIDIA RTX A2000 12GB 12GB GDDR6 70W 4x miniDP 1.4a Dual slot None
NVIDIA RTX A4000 16GB GDDR6 with ECC 140W 4x DP 1.4a Single slot None
NVIDIA RTX A4500 20GB GDDR6 with ECC 200W 4x DP 1.4 Dual slot NVLink
ThinkStation P620
PSREF
Product Specifications
Reference
ThinkStation P620 – January 10 2024 2 of 8
NVIDIA RTX A5000 24GB GDDR6 with ECC 230W 4x DP 1.4a Dual slot NVLink
NVIDIA RTX A5500 24GB GDDR6 with ECC 230W 4x DP 1.4a Dual slot NVLink
NVIDIA RTX 5000 Ada Generation 32GB GDDR6 with ECC 250W 4x DP 1.4a Dual slot –
AMD Radeon™ PRO W6400 4GB GDDR6 50W 2x DP 1.4 Single slot –
AMD Radeon PRO W6600 8GB GDDR6 130W 4x DP 1.4 Single slot –
AMD Radeon PRO W6800 32GB GDDR6 with ECC 250W 6x miniDP 1.4a Dual slot –
AMD Radeon Pro VII 16GB HBM2 250W 6x DP 1.4 Dual slot –
AMD Radeon Pro W5500 8GB GDDR6 125W 4x DP 1.4 Single slot –
AMD Radeon Pro W5700 8GB GDDR6 205W 5x miniDP 1.4, 1x USB-C® Dual slot –
AMD Radeon Pro WX 3200 4GB GDDR5 50W 4x miniDP 1.4 Single slot –
Quadro® GV100 32GB HBM2 250W 4x DP 1.4 Dual slot NVLink
Quadro P1000 4GB GDDR5 50W 4x miniDP 1.4 Single slot None
Quadro P2200 5GB GDDR5 75W 4x DP 1.4 Single slot None
Quadro P620 2GB GDDR5 40W 4x miniDP 1.4 Single slot None
Quadro RTX 4000 8GB GDDR6 160W 3x DP 1.4, 1x VirtualLink Single slot None
Quadro RTX 5000 16GB GDDR6 265W 4x DP 1.4, 1x VirtualLink Dual slot NVLink
Quadro RTX 6000 24GB GDDR6 295W 4x DP 1.4, 1x VirtualLink Dual slot NVLink
Quadro RTX 8000 48GB GDDR6 295W 4x DP 1.4, 1x VirtualLink Dual slot NVLink
Monitor Support
Monitor Support
Supports multiple displays via discrete graphics, the number of maximum monitors supported depends on the graphic card
in use
Chipset
Chipset
AMD WRX80 chipset
Memory
Max Memory[1]
Up to 512GB (8x 64GB or 4x 128GB)
Memory Type
DDR4-3200 RDIMM ECC
Memory Slots
8 DDR4 DIMM slots, 8 channels capable
Memory Protection
ECC
Notes:
[1] The max memory is based on the test results with current Lenovo® memory offerings.
Storage
Storage Support[1][2]
Up to 5x 3.5″ SATA HDD + 11x M.2 SSD
• 3.5″ HDD up to 4TB each
• Onboard M.2 SSD up to 4TB each
• M.2 SSD by M.2 to PCIe® adapter up to 2TB
Storage Type***
[3]
Disk Type Interface RPM Offering
3.5″ SATA HDD SATA 6Gb/s 7.2K 1TB / 2TB / 4TB
ThinkStation P620
PSREF
Product Specifications
Reference
ThinkStation P620 – January 10 2024 3 of 8
M.2 PCIe SSD PCIe NVMe®, PCIe 3.0 – 256GB / 512GB / 1TB / 2TB
M.2 PCIe SSD PCIe NVMe, PCIe 4.0 – 256GB / 512GB / 1TB / 2TB / 4TB
Storage Controllers
Storage Controller Type Interface RAID Cache
Integrated NVMe controller Standard PCIe NVMe 0/1/10/5 None
Integrated SATA controller Standard SATA 6.0Gb/s 0/1/10/5 None
Notes:
[1] The storage capacity supported is based on the test results with current Lenovo storage offerings.
[2] For detailed storage bays infomation and how to upgrade optional drives for ThinkStation® products, please visit
ThinkStation Storage Upgrade Guide
[3] 4TB M.2 SSD is for onboard M.2 slots only.
Removable Storage
Optical Support
Optional one 9.0mm optical drive, DVD-ROM, DVD±RW, and Blu-ray
Card Reader
• 15-in-1 card reader
• No card reader
Multi-Media
Audio Chip
High Definition (HD) Audio, Realtek® ALC4050H codec
Speakers
Single speaker
Power Supply
Power Supply
Power Type Efficiency Key Features
1000W Fixed 92% Autosensing, 80 PLUS Platinum qualified
DESIGN
Mechanical
Form Factor
Tower (33L)
Dimensions (WxDxH)[1]
165 x 455x 446 mm (6.5 x 17.9 x 17.6 inches)
Weight[2]
24 kg (52.91 lbs, maximum configuration)
Bays
• 2x 3.5″ disk bay (standard)
3x 3.5″ disk bay (optional):
2 bays come with 3rd disk or Storage Bay Upgrade Kit
1 bay via flex bay
•
Flex Bays
1x flex bay, supports one of the following:
• Front Access Storage Enclosure
• 5.25″ Slim ODD and HDD cage
M.2 Slots
Up to 11x M.2 SSD:
• 2 via onboard slots
• 8 via Quad M.2 to PCIe adapters (only supports PCIe 3.0 SSD)
ThinkStation P620
PSREF
Product Specifications
Reference
ThinkStation P620 – January 10 2024 4 of 8
• 1 via Single M.2 to PCIe adapter (only supports PCIe 3.0 SSD)
Expansion Slots
Supports 6 PCIe slots with 4x PCIe 4.0 x16 slots plus 2x PCIe 4.0 x8 slots.
• Slot 1: PCIe 4.0 x16, full height, full length, 75W, double-width, by CPU
• Slot 2: PCIe 4.0 x8, full height, full length, 25W, by CPU
• Slot 3: PCIe 4.0 x16, full height, full length, 75W, double-width, by CPU
• Slot 4: PCIe 4.0 x16, full height, full length, 75W, by CPU
• Slot 5: PCIe 4.0 x16, full height, full length, 75W, by CPU
• Slot 6: PCIe 4.0 x8, full height, full length, 25W, by IOH
Notes:
[1] The system dimensions may vary depending on configurations.
[2] The system weight is approximate and based on results in Lenovo lab, which varies depending on the source of
component, variance of the distribution of each component, and manufacturing process. It may not be the exact weight
for each specific model.
CONNECTIVITY
Network
Onboard Ethernet
10 GbE Ethernet, Marvell AQtion AQN-107, 1x 10GbE RJ-45
Optional Ethernet
One additional Ethernet adapter support, up to two additional 10 GbE ports
• Gigabit Ethernet, Intel® I350-T4, 4x RJ-45, PCIe x4
• Gigabit Ethernet, Broadcom BCM5719, 4x RJ-45, PCIe x4
• Gigabit Ethernet, Broadcom BCM5720, 2x RJ-45, PCIe x1
• 10 Gigabit Ethernet, Intel X550-T2, 2x RJ-45, PCIe x4
• 10 Gigabit Ethernet, Intel X710-DA2, 2x SFP+, PCIe x8
• 10 Gigabit Ethernet, Marvell AQtion AQN-107, 1x RJ-45, PCIe x4
WLAN + Bluetooth®**
• Intel Wireless-AC 9260, 802.11ac Dual Band 2×2 Wi-Fi® + Bluetooth 5.1
Intel Wi-Fi 6E AX210, 802.11ax 2×2 Wi-Fi + Bluetooth 5.1 (Bluetooth 5.3 hardware ready)[1] •
• No WLAN and Bluetooth
Notes:
[1] Bluetooth 5.3 is hardware ready but may run at a lower version due to OS limitations.
Wi-Fi 6E is only enabled on Windows 11 and operates as Wi-Fi 6 with Windows 10.
Ports[1]
Front Ports
• 2x USB-C 3.2 Gen 2 (support data transfer)
• 1x USB 3.2 Gen 2 (Always On and fast charge)
• 1x USB 3.2 Gen 2
• 1x headphone / microphone combo jack (3.5mm)
Optional Front Ports
1x USB-C 3.2 Gen 1 (support data transfer, with flex module)
Rear Ports[2]
• 2x USB 2.0
• 4x USB 3.2 Gen 2
• 1x Ethernet (10GbE RJ-45)
• 1x line-in (3.5mm)
• 1x line-out (3.5mm)
• 1x microphone (3.5mm)
• 2x PS/2 ports (keyboard / mouse)
Optional Rear Ports***
• 1x Thunderbolt™ 3
• 2x USB-C 3.2 Gen 2 (support data transfer, via 2-port USB-C expansion card, PCIe x4)
• 1x serial
ThinkStation P620
PSREF
Product Specifications
Reference
ThinkStation P620 – January 10 2024 5 of 8
Notes:
[1] The transfer speed of following ports will vary and, depending on many factors, such as the processing speed of the
host device, file attributes and other factors related to system configuration and your operating environment, will be
slower than theoretical speed.
USB 2.0: 480 Mbit/s;
USB 3.2 Gen 1 (SuperSpeed USB 5Gbps, formerly USB 3.0 / USB 3.1 Gen 1): 5 Gbit/s;
USB 3.2 Gen 2 (SuperSpeed USB 10Gbps, formerly USB 3.1 Gen 2): 10 Gbit/s;
USB4® 20Gbps / USB 3.2 Gen 2×2 (SuperSpeed USB 20Gbps): 20 Gbit/s;
USB4 40Gbps (USB 40Gbps): 40 Gbit/s;
Thunderbolt 3/4: 40 Gbit/s.
[2] For video ports on discrete graphics, please see graphics section.
SECURITY & PRIVACY
Security
Security Chip
Discrete TPM 2.0, TCG certified, FIPS 140-2 certified
Physical Locks
• (Optional) Access panel lock kit with common key
• (Optional) Access panel lock kit with unique key
• Kensington® Security Slot™, 3 x 7 mm
Chassis Intrusion Switch
Chassis intrusion switch
BIOS Security
• Administrator password
• Power-on password
MANAGEABILITY
System Management
System Management
AMD PRO Manageability
Diagnostic
Diagnostic
• ThinkStation Diagnostics
• Photo-audio transfer with Lenovo PC Diagnostics for Android™ and iOS
• Front 4-digit diagnostic
• Lenovo UEFI Bootable Diagnostics
SERVICE
Warranty[1]
Base Warranty
3-year limited onsite service
Notes:
[1] The warranty upgrades may be bundled with some models, please check the “Included upgrade” column in the specific
model’s configurations. For more service extensions, please go to https://smartfind.lenovo.com/. To learn more details of
warranty policy, please access https://pcsupport.lenovo.com/warranty.
ENVIRONMENTAL
Operating Environment
ThinkStation P620
PSREF
Product Specifications
Reference
ThinkStation P620 – January 10 2024 6 of 8
Temperature
• Operating: 10°C (50°F) to 35°C (95°F)
• Storage: -40°C (-40°F) to 60°C (140°F)
Altitude
• Operating: 0 m (0 ft) to 3048 m (10,000 ft)
• Storage: 0 m (0 ft) to 12192 m (40,000 ft)
Humidity
• Operating: 20% to 80%
• Storage: 10% to 90%
CERTIFICATIONS
Green Certifications[1]
Green Certifications
• (Optional) ENERGY STAR® 8.0
• ENERGY STAR 8.0 (on model 30E00006US)
• EPEAT™ Silver Registered
• GREENGUARD®
• RoHS compliant
Notes:
[1] The items listed under the “Green Certifications” section may not only refer to certification but also registration or selfdeclaration.
ISV Certifications
ISV Certifications
Please visit www.thinkworkstations.com/isv-certifications/
• Feature with ** means that only one offering listed under the feature is configured on selected models.
Feature with *** means that one or more offerings listed under the feature could be configured on selected
models.
•
Lenovo reserves the right to change specifications or other product information without notice. Lenovo is not
responsible for photographic or typographical errors. LENOVO PROVIDES THIS PUBLICATION “AS IS,”
WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING THE IMPLIED WARRANTIES
OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. Some jurisdictions do not allow
disclaimer of express or implied warranties in certain transactions, therefore this disclaimer may not apply to
you.
•
The specifications on this page may not be available in all regions, an
