TL-SF1005D
Roll over image to zoom in

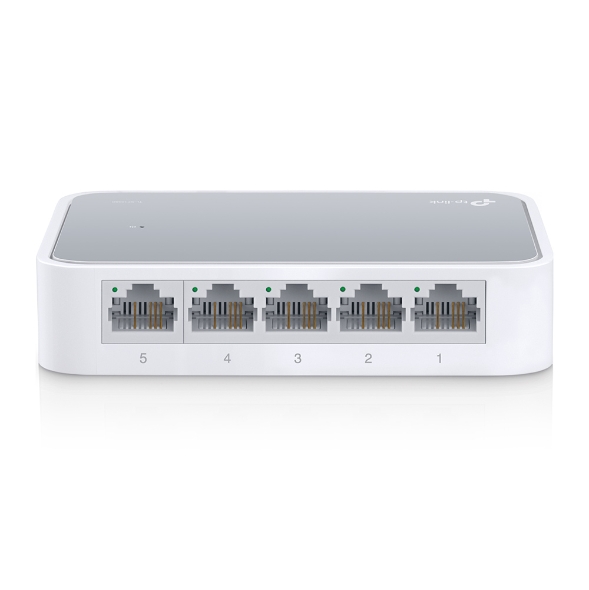

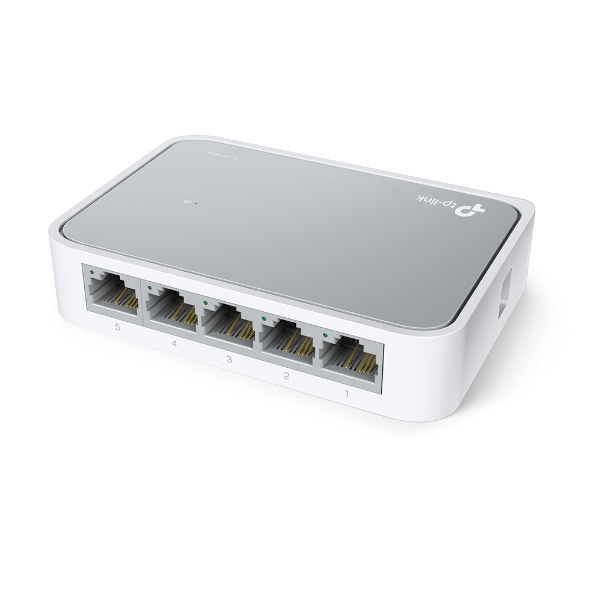

5-Port 10/100Mbps Desktop Switch
- 5 10/100Mbps Auto-Negotiation RJ45 ports, Supports Auto MDI / MDIX
- Green Ethernet technology saves power consumption
- IEEE 802.3x flow control provides reliable data transfer
- Plastic case, desktop design
- Plug and play, no configuration required
HARDWARE FEATURES | |
---|---|
Interface | 5 10/100Mbps RJ45 Ports AUTO Negotiation/AUTO MDI/MDIX |
Fan Quantity | Fanless |
External Power Supply | External Power Adapter(Output: 5.0VDC / 0.6A) |
Dimensions ( W x D x H ) | 4.1 x 2.8 x 0.9 in. (103.5 x 70 x 22 mm) |
Max Power Consumption | 1.87W(220V/50Hz) |
Max Heat Dissipation | 6.38BTU/h |
SOFTWARE FEATURES | |
---|---|
Transfer Method | Store and Forward |
Advanced Functions | Green Technology 802.3X Flow Control, Back Pressure |
OTHERS | |
---|---|
Certification | FCC, CE, RoHs |
Package Contents | 5-Port 10/100Mbps Desktop Switch Power Adapter Installation Guide |
Environment | Operating Temperature: 0℃~40℃ (32℉~104℉); Storage Temperature: -40℃~60℃ (-40℉~140℉); Operating Humidity: 10%~90% non-condensing; Storage Humidity: 5%~90% non-condensing |
