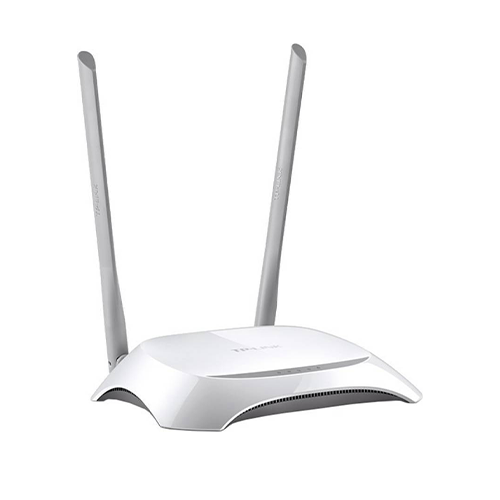

TL-WR840N
Roll over image to zoom in
300Mbps Wireless N Speed
- 300Mbps wireless transmission rate ideal for both bandwidth sensitive tasks and basic work
- Supports Access Point mode to create a new Wi-Fi access point
- Supports Range Extender mode to boost the existing wireless coverage in your room
- Parental Controls manage when and how connected devices can access the internet
- IPTV supports IGMP Proxy/Snooping, Bridge and Tag VLAN to optimize IPTV streaming
- compatible with IPv6 (Internet Protocol version 6)
- Guest Network provides separate access for guests while securing the home network
WIRELESS | |
---|---|
Standards | Wi-Fi 4 IEEE 802.11n/b/g 2.4 GHz |
WiFi Speeds | N300 2.4 GHz: 300 Mbps (802.11n) |
WiFi Range | 2 Bedroom Houses
2× Fixed Antennas |
WiFi Capacity | Legacy |
Working Modes | Router Mode Access Point Mode Range Extender Mode WISP Mode |
HARDWARE | |
---|---|
Processor | Single-Core CPU |

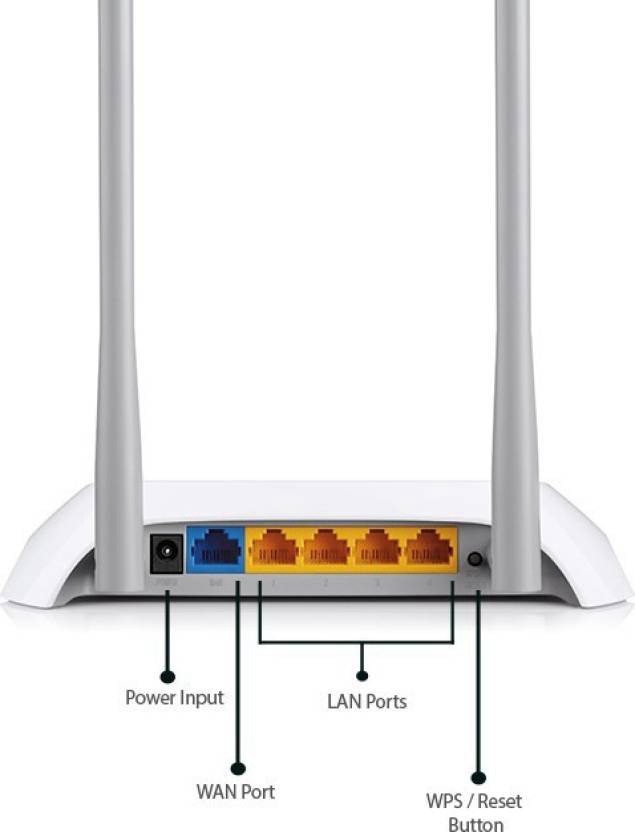

Ethernet Ports | 1× 10/100 Mbps WAN Port 4× 10/100 Mbps LAN Ports |
Buttons | Reset Button |
Power | 9 V ⎓ 0.6 A |
SECURITY | |
---|---|
WiFi Encryption | WEP WPA WPA2 WPA/WPA2-Enterprise (802.1x) |
Network Security | SPI Firewall Access Control IP & MAC Binding Application Layer Gateway |
Guest Network | 1× 2.4 GHz Guest Network |
SOFTWARE | |
---|---|
Protocols | IPv4 IPv6 |
Parental Controls | URL Filtering Time Controls |
WAN Types | Dynamic IP Static IP PPPoE PPTP L2TP |
Quality of Service | QoS by Device |
NAT Forwarding | Port Forwarding Port Triggering DMZ UPnP |
IPTV | IGMP Proxy IGMP Snooping |
DHCP | Address Reservation DHCP Client List Server |
DDNS | NO-IP Comex DynDNS |
Management | Tether App Webpage Check Web Emulator> |
OTHER | |
---|---|
System Requirements | Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser
Cable or DSL Modem (if needed) Subscription with an internet service provider (for internet access) |
Certifications | FCC, CE, RoHS |
Environment | Operating Temperature: 0℃~40℃ (32℉ ~104℉) Storage Temperature: -40℃~70℃ (-40℉ ~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
TEST DATA | |
---|---|
WiFi Transmission Power | CE: <20dBm(2.4GHz) FCC: <30dBm |
WiFi Reception Sensitivity | 270M: -68dBm@10% PER 130M: -68dBm@10% PER 108M: -68dBm@10% PER 54M: -68dBm@10% PER 11M: -85dBm@8% PER 6M: -88dBm@10% PER 1M: -90dBm@8% PER |
PHYSICAL | |
---|---|
Dimensions (W×D×H) | 7.2 × 5.0 × 1.4 in (182 × 128 × 35 mm) |
Package Contents | Wi-Fi Router TL-WR840N Power Adapter RJ45 Ethernet Cable Quick Installation Guide |
