TL-CPE610
Roll over image to zoom in

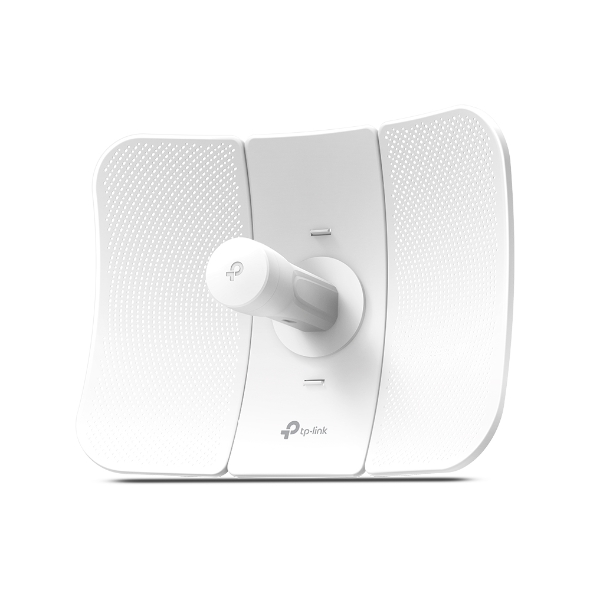

5GHz 300Mbps 23dBi Outdoor CPE
- Up to 300Mbps on 5GHz wireless data rates*1
- 23dBi high-gain directional 2×2 MIMO antenna and a dedicated metal reflector, ideal for long-distance wireless transmission up to 30km*2
- Excellent beam directivity, improved latency and noise cancellation

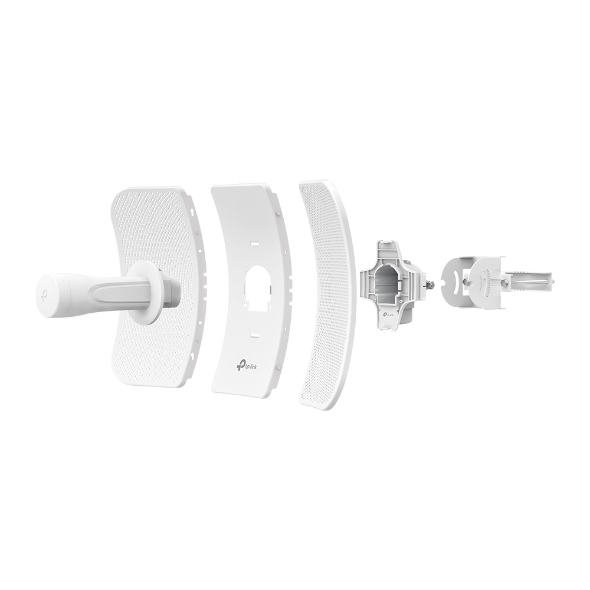

- Innovative snap-lock parts make for fast assembly and a sturdy structural design keeps CPE610 stable even in strong winds
- Durable IP65 weatherproof enclosure along with 15 kV ESD and 6 kV lightning protection ensures all-weather suitability*3
- TP-Link Pharos MAXtream TDMA technology improves throughput, capacity and latency performance
- Pharos Control gives administrators a free, centralized management system
- Passive PoE supports to allow flexible deployment and convenient installation
HARDWARE FEATURES | |
---|---|
Processor | Qualcomm 560MHz CPU, MIPS 74Kc |
Memory | 64MB DDR2 RAM,8MB Flash |
Interface | 1 10/100Mbps Shielded Ethernet Port (LAN/POE) 1 Reset Button |
Power Supply | Passive Power over Ethernet via LAN (+4,5pins; -7,8pins) Voltage range: 16-27VDC |
Power Consumption | 7.41 W Note: When deployed using Passive PoE, the power drawn from the power source will be higher by some amount depending on the length of the connecting cable. |
Dimensions ( W x D x H ) | 366 x 280 x 207 mm (14.4 x 11.0 x 8.1 in.) |
Antenna Gain | 23dBi |
Antenna Beamwidth | 9°(Azimuth), 7°(Elevation) |
Protection | 15KV ESD Protection 6KV Lightning Protection |
Enclosure | Material: Outdoor PC stabilized plastic Weatherproof: IP65 water and dust proof design |
WIRELESS FEATURES | |
---|---|
Wireless Standards | IEEE 802.11a/n |
Proprietary Protocol | TDMA Mode (with Pharos MAXtream enabled) |
Wireless Speeds | Up to 300Mbps (40MHz,Dynamic) Up to 144.4Mbps (20MHz,Dynamic) Up to 72.2Mbps (10MHz,Dynamic) Up to 36.1Mbps (5MHz,Dynamic) |
Frequency | 5.15~5.85GHz Note: Available operating frequency may vary depending on the limitations of the countries or regions in which the device is used. |
Transmit Power | Max. 25dBm (Adjustable power by 1dBm) |
