FG-100F-BDL-950-12 DATASHEET

AI/ML Security and Deep Visibility
The FortiGate 100F Series NGFW combines AI-powered
security and machine learning to deliver Threat Protection
at any scale. Get deeper visibility into your network and see
applications, users, and devices before they become threats.
Powered by a rich set of AI/ML security capabilities that extend into an integrated security
fabric platform, the FortiGate 100F Series delivers secure networking that is broad, deep, and
automated. Secure your network end to end with advanced edge protection that includes
web, content, and device security, while network segmentation and secure SD-WAN reduce
complexity and risk in hybrid IT networks.
Universal ZTNA automatically controls, verifies, and facilitates user access to applications,
reducing lateral threats by providing access only to validated users. Ultra-fast Threat
Protection and SSL Inspection provides security at the edge you can see without impacting
performance.
Highlights
Gartner Magic Quadrant
Leader for both Network
Firewalls and WAN Edge
Infrastructure.
Security-Driven
Networking FortiOS
delivers converged
networking and security.
State-of-the-Art
Unparalleled Performance
with Fortinet’s patented /
SPU / vSPU processors.
Enterprise Security
with consolidated AI /
ML-powered FortiGuard
Services.
Deep Visibility
into applications, users,
and devices beyond
traditional firewall
techniques.
IPS NGFW Threat Protection Interfaces
2.6 Gbps 1.6 Gbps 1 Gbps Multiple GE RJ45, GE SFP and 10 GE SFP+
slots
Data Sheet
FortiOS Everywhere
FortiOS, Fortinet’s Advanced Operating System
FortiOS enables the convergence of high performing networking and security across the
Fortinet Security Fabric. Because it can be deployed anywhere, it delivers consistent and
context-aware security posture across network, endpoint, and multi-cloud environments.
FortiOS powers all FortiGate deployments whether a physical or virtual device, as a container,
or as a cloud service. This universal deployment model enables the consolidation of many
technologies and use cases into a simplified, single policy and management framework. Its
organically built best-of-breed capabilities, unified operating system, and ultra-scalability
allows organizations to protect all edges, simplify operations, and run their business without
compromising performance or protection.
FortiOS dramatically expands the Fortinet Security Fabric’s ability to deliver advanced AI/
ML-powered services, inline advanced sandbox detection, integrated ZTNA enforcement,
and more, provides protection across hybrid deployment models for hardware, software, and
Software-as-a-Service with SASE.
FortiOS expands visibility and control, ensures the consistent deployment and enforcement of
security policies, and enables centralized management across large-scale networks with the
following key attributes:
• Interactive drill-down and topology viewers that display real-time status
• On-click remediation that provides accurate and quick protection against threats and abuses
• Unique threat score system correlates weighted threats with users to prioritize investigations
FortiConverter Service
FortiConverter Service provides hassle-free migration to help organizations transition from a
wide range of legacy firewalls to FortiGate Next-Generation Firewalls quickly and easily.
The service eliminates errors and redundancy by employing best practices with advanced
methodologies and automated processes. Organizations can accelerate their network protection
with the latest FortiOS technology.
Intuitive easy to use view into the network and
endpoint vulnerabilities
Visibility with FOS Application Signatures
Available in
Cloud
Hosted
Virtual
Appliance
Container
2
FortiGate 100F Series Data Sheet
FortiGuard Services
Network and File Security
Services provide protection against network-based and file-based threats. This consists of
Intrusion Prevention (IPS) which uses AI/M models to perform deep packet/SSL inspection
to detect and stop malicious content, and apply virtual patching when a new vulnerability is
discovered. It also includes Anti-Malware for defense against known and unknown file-based
threats. Anti-malware services span both antivirus and file sandboxing to provide multilayered protection and are enhanced in real-time with threat intelligence from FortiGuard Labs.
Application Control enhances security compliance and offers real-time application visibility.
Web / DNS Security
Services provide protection against web-based threats including DNS-based threats, malicious
URLs (including even in emails), and botnet/command and control communications. DNS
filtering provides full visibility into DNS traffic while blocking high-risk domains, and protects
against DNS tunneling, DNS infiltration, C2 server ID and Domain Generation Algorithms (DGA).
URL filtering leverages a database of 300M+ URLs to identify and block links to malicious sites
and payloads. IP Reputation and anti-botnet services prevent botnet communications, and
block DDoS attacks from known sources.
SaaS and Data Security
Services address numerous security use cases across application usage as well as overall
data security. This consists of Data Leak Prevention (DLP) which ensures data visibility,
management and protection (including blocking exfiltration) across networks, clouds, and
users, while simplifying compliance and privacy implementations. Separately, our Inline Cloud
Access Security Broker (CASB) service protects data in motion, at rest, and in the cloud.
The service enforces major compliance standards and manages account, user and cloud
application usage. Services also include capabilities designed to continually assess your
infrastructure, validate that configurations are working effectively and secure, and generate
awareness of risks and vulnerabilities that could impact business operations. This includes
coverage across IoT devices for both IoT detection and IoT vulnerability correlation.
Zero-Day Threat Prevention
Zero-day threat prevention entails Fortinet’s AI-based inline malware prevention, our most
advanced sandbox service, to analyze and block unknown files in real-time, offering subsecond protection against zero-day and sophisticated threats across all NGFWs. The service
also has a built-in MITRE ATT&CK® matrix to accelerate investigations. The service focuses
on comprehensive defense by blocking unknown threats while streamlining incident response
efforts and reducing security overhead.
OT Security
The service provides OT detection, OT vulnerability correlation, virtual patching, OT signatures,
and industry-specific protocol decoders for overall robust defense of OT environments and
devices.
3
FortiGate 100F Series Data Sheet
Secure Any Edge at Any Scale
Powered by Security Processing Unit (SPU)
Traditional firewalls cannot protect against today’s content- and connection-based threats
because they rely on off-the-shelf hardware and general-purpose CPUs, causing a dangerous
performance gap. Fortinet’s custom SPU processors deliver the power you need—up to
520Gbps—to detect emerging threats and block malicious content while ensuring your network
security solution does not become a performance bottleneck.
Powered by Purpose-Built Secure SD-WAN ASIC SOC4
• Combines a RISC-based CPU with Fortinet’s proprietary Security Processing Unit (SPU)
content and network processors for unmatched performance
• Delivers industry’s fastest application identification and steering for efficient business
operations
• Accelerates IPsec VPN performance for best user-experience on direct internet access
• Enables best of breed NGFW Security and deep SSL inspection with high performance
• Extends security to access layer to enable SD-Branch transformation with accelerated and
integrated switch and access point connectivity
• Reduces environmental footprint by saving on average over 60% in power consumption
compared to previous generation of FortiGate models
FortiSoC4
1403LP699
Centralized Network and Security
Management at Scale
FortiManager, the centralized management
solution from Fortinet, enables integrated
management of the Fortinet security fabric,
including devices like FortiGate, FortiSwitch,
and FortiAP. It simplifies and automates the
oversight of network and security functions
across diverse environments, serving as
the fundamental component for deploying
Hybrid Mesh Firewalls.
Intuitive view and clear insights into network
security posture with FortiManager
4
FortiGate 100F Series Data Sheet
Use Cases
Next Generation Firewall (NGFW)
• FortiGuard Labs’ suite of AI-powered Security Services—natively integrated with your
NGFW—secures web, content, and devices and protects networks from ransomware and
sophisticated cyberattacks
• Real-time SSL inspection (including TLS 1.3) provides full visibility into users, devices, and
applications across the attack surface
• Fortinet’s patented SPU (Security Processing Unit) technology provides industry-leading
high-performance protection
Secure SD-WAN
• FortiGate WAN Edge powered by one OS and unified security and management framework
and systems transforms and secures WANs
• Delivers superior quality of experience and effective security posture for work-from-any
where models, SD-Branch, and cloud-first WAN use cases
• Achieve operational efficiencies at any scale through automation, deep analytics, and
self-healing
Universal ZTNA
• Control access to applications no matter where the user is and no matter where the
application is hosted for universal application of access policies
• Provide extensive authentications, checks, and enforce policy prior to granting application
access—every time
• Agent-based access with FortiClient or agentless access via proxy portal for guest or BYOD
Segmentation
• Dynamic segmentation adapts to any network topology to deliver true end-to-end
security—from the branch to the datacenter and across multi-cloud environments
• Ultra-scalable, low latency, VXLAN segmentation bridges physical and virtual domains
with Layer 4 firewall rules
• Prevents lateral movement across the network with advanced, coordinated protection from
FortiGuard Security Services detects and prevents known, zero-day, and unknown attacks
5
FortiGate 100F Series Data Sheet

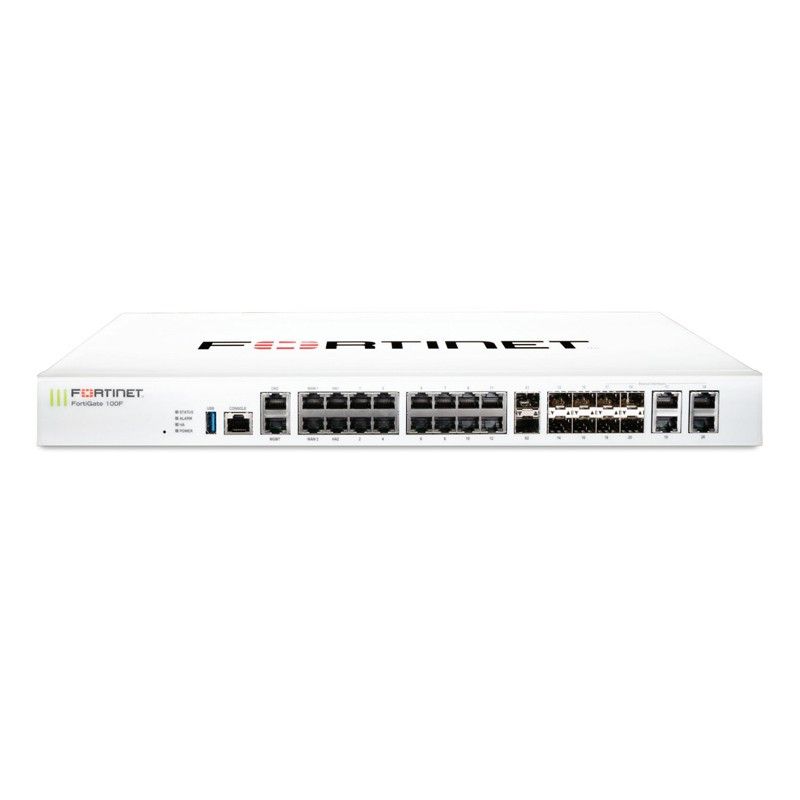

Hardware
FortiGate 100F Series Interfaces
1. 1 x USB Port
2. 1 x Console Port
3. 2 x GE RJ45 MGMT/DMZ
Ports
4. 2 x GE RJ45 WAN Ports
5. 2 x GE RJ45 HA Ports
6. 12 x GE RJ45 Ports
7. 2 x 10 GE SFP+ FortiLink
Slots
8. 4 x GE SFP Slots
9. 4 x GE RJ45/ SFP Shared
Media Pairs
Dual Power Supplies
Power supply redundancy is essential in the operation of mission-critical networks. The
FortiGate 100F Series offers dual built-in non-hot swappable power supplies.
Access Layer Security
FortiLink protocol enables you to converge security and the network access by integrating
the FortiSwitch into the FortiGate as a logical extension of the NGFW. These FortiLink enabled
ports can be reconfigured as regular ports as needed.
USB
HA1
12
11
10
9
8
7
6
5
4
1 3
CONSOLE STATUS
ALARM
HA
POWER
FortiGate 101F
WAN 2 HA2 2
DMZ WAN 1
MGMT
Shared Interfaces
16
15
14
13
18 20
17 19
18 20
X1 17 19
X2
1 2 3 4 5 6 7 8 9
SOC4 1U / 480GB AC
DUAL
Hardware Features
6
FortiGate 100F Series Data Sheet
Specifications
Note: All performance values are “up to” and vary depending on system configuration.
1 IPsec VPN performance test uses AES256-SHA256.
2 IPS (Enterprise Mix), Application Control, NGFW and Threat Protection are measured
with Logging enabled.
3 SSL Inspection performance values use an average of HTTPS sessions of different
cipher suites.
4 NGFW performance is measured with Firewall, IPS and Application Control enabled.
5 Threat Protection performance is measured with Firewall, IPS, Application Control and
Malware Protection enabled.
6 Uses RSA-2048 certificate.
FORTIGATE 100F FORTIGATE 101F
Interfaces and Modules
Hardware Accelerated GE RJ45 Ports 12
Hardware Accelerated GE RJ45
Management/ HA/ DMZ Ports
1 / 2 / 1
Hardware Accelerated GE SFP Slots 4
Hardware Accelerated 10 GE SFP+
FortiLink Slots (default)
2
GE RJ45 WAN Ports 2
GE RJ45 or SFP Shared Ports * 4
USB Port 1
Console Port 1
Onboard Storage 0 1x 480 GB SSD
Included Transceivers 0
System Performance — Enterprise Traffic Mix
IPS Throughput 2 2.6 Gbps
NGFW Throughput 2, 4 1.6 Gbps
Threat Protection Throughput 2, 5 1 Gbps
System Performance and Capacity
IPv4 Firewall Throughput
(1518 / 512 / 64 byte, UDP)
20 / 18 / 10 Gbps
Firewall Latency (64 byte, UDP) 4.97 μs
Firewall Throughput (Packet per Second) 15 Mpps
Concurrent Sessions (TCP) 1.5 Million
New Sessions/Second (TCP) 56 000
Firewall Policies 10 000
IPsec VPN Throughput (512 byte) 1 11.5 Gbps
Gateway-to-Gateway IPsec VPN Tunnels 2000
Client-to-Gateway IPsec VPN Tunnels 16 000
SSL-VPN Throughput 1 Gbps
Concurrent SSL-VPN Users
(Recommended Maximum, Tunnel Mode)
500
SSL Inspection Throughput
(IPS, avg. HTTPS) 3
1 Gbps
SSL Inspection CPS (IPS, avg. HTTPS) 3 1800
SSL Inspection Concurrent Session
(IPS, avg. HTTPS) 3
135 000
Application Control Throughput
(HTTP 64K) 2
2.2 Gbps
CAPWAP Throughput (HTTP 64K) 15 Gbps
Virtual Domains (Default / Maximum) 10 / 10
Maximum Number of FortiSwitches
Supported
32
Maximum Number of FortiAPs
(Total / Tunnel)
128 / 64
Maximum Number of FortiTokens 5000
High Availability Configurations Active-Active, Active-Passive, Clustering
FORTIGATE 100F FORTIGATE 101F
Dimensions and Power
Height x Width x Length (inches) 1.73 x 17 x 10
Height x Width x Length (mm) 44 x 432 x 254
Weight 7.25 lbs (3.29 kg) 7.56 lbs (3.43 kg)
Form Factor
(supports EIA/non-EIA standards)
Rack Mount, 1 RU
AC Power Supply 100–240V AC, 50/60 Hz
Power Consumption
(Average / Maximum)
26.5 W / 29.5 W 35.3 W / 39.1 W
Current (Maximum) 100V / 1A, 240V / 0.5A
Heat Dissipation 100.6 BTU/h 121.13 BTU/h
Redundant Power Supplies Yes
(Default dual non-swappable AC PSU for
1+1 Redundancy)
Power Supply Efficiency Rating 80Plus Compliant
Operating Environment and Certifications
Operating Temperature 32°F to 104°F (0°C to 40°C)
Storage Temperature -31°F to 158°F (-35°C to 70°C)
Humidity 10% to 90% non-condensing
Noise Level 40.4 dBA
Forced Airflow Side to Back
Operating Altitude Up to 10 000 ft (3048 m)
Compliance FCC Part 15B, Class A, CE, RCM, VCCI,
UL/cUL, CB, BSMI
Certifications USGv6/IPv6
* Latency based on Ultra Low Latency (ULL ports)
7
FortiGate 100F Series Data Sheet
Ordering Information
Product SKU Description
FortiGate 100F FG-100F 22x GE RJ45 ports (including 2x WAN ports, 1x DMZ port, 1x Mgmt port, 2x HA ports, 16x switch
ports with 4 SFP port shared media), 4 SFP ports, 2x 10 GE SFP+ FortiLinks, dual power supplies
redundancy.
FortiGate 101F FG-101F 22x GE RJ45 ports (including 2x WAN ports, 1x DMZ port, 1x Mgmt port, 2x HA ports, 16x switch
ports with 4 SFP port shared media), 4 SFP ports, 2x 10 GE SFP+ FortiLinks, 480GB onboard
storage, dual power supplies redundancy.
Optional Accessories SKU Description
1 GE SFP RJ45 Transceiver Module FN-TRAN-GC 1 GE SFP RJ45 transceiver module for all systems with SFP and SFP/SFP+slots.
1 GE SFP SX Transceiver Module FN-TRAN-SX 1 GE SFP SX transceiver module for all systems with SFP and SFP/SFP+ slots.
1 GE SFP LX Transceiver Module FN-TRAN-LX 1 GE SFP LX transceiver module for all systems with SFP and SFP/SFP+ slots.
10 GE SFP+ RJ45 Transceiver Module FN-TRAN-SFP+GC 10 GE SFP+ RJ45 transceiver module for systems with SFP+ slots.
10 GE SFP+ Transceiver Module, Short Range FN-TRAN-SFP+SR 10 GE SFP+ transceiver module, short range for all systems with SFP+ and SFP/SFP+ slots.
10 GE SFP+ Transceiver Module, Long Range FN-TRAN-SFP+LR 10 GE SFP+ transceiver module, long range for all systems with SFP+ and SFP/SFP+ slots.
10 GE SFP+ Transceivers, Extended Range FN-TRAN-SFP+ER 10 GE SFP+ transceiver module, extended range for all systems with SFP+ and SFP/SFP+ slots.
10GE SFP+ Transceiver Module, 30 km Long Range FN-TRAN-SFP+BD27 10GE SFP+ transceiver module, 30KM long range single BiDi for systems with SFP+ and SFP/
SFP+ slots (connects to FN-TRAN-SFP+BD33, ordered separately).
10GE SFP+ Transceiver Module, 30 km Long Range FN-TRAN-SFP+BD33 10GE SFP+ transceiver module, 30KM long range single BiDi for systems with SFP+ and SFP/
SFP+ slots (connects to FN-TRAN-SFP+BD27, ordered separately).
10 GE SFP+ Passive Direct Attach Cable 1m FN-CABLE-SFP+1 10 GE SFP+ passive direct attach cable, 1m for systems with SFP+ and SFP/SFP+ slots.
10 GE SFP+ Passive Direct Attach Cable 3m FN-CABLE-SFP+3 10 GE SFP+ passive direct attach cable, 3m for systems with SFP+ and SFP/SFP+ slots.
10 GE SFP+ Passive Direct Attach Cable 5m FN-CABLE-SFP+5 10 GE SFP+ passive direct
