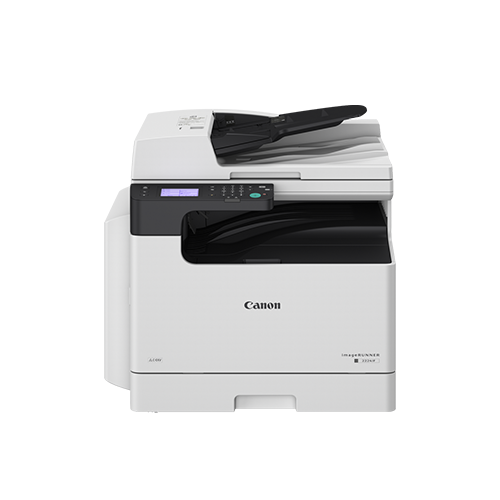

Canon Image RUNNER 2224 5942C001AA
Roll over image to zoom in
Main Unit
-
Machine TypeA3 Monochrome Laser Multifunctional
-
Core FunctionsPrint, Copy, Scan, Send and Fax
-
Processor Speed1.6GHz Dual Core Processor
-
Control Panel
8.9 cm/3.5 inch monochrome Touch panel -
MemoryStandard: 1.0GB RAM
-
StorageStandard: 2GB eMMC
-
Interface ConnectionStandard: USB 2.0 (Device) x1
-
Paper Supply Capacity (A4, 80 gsm)Standard: 350 sheets
Maximum: 600 sheets (with Cassette Feeding Module-AK1) -
Paper Output Capacity (A4, 80 gsm)Standard: 250 sheets
Maximum: 250 sheets -
Finishing CapabilitiesCollate, Group
-
Supported Media TypesMulti-purpose Tray:
Thin, Plain, Recycled, Thick, Color, Bond, Transparency, Label, Pre-punched, EnvelopePaper Cassette:
Plain, Recycled, Color, Pre-punched -
Supported Media SizesMulti-purpose tray:
A3, A4, A4R, A5, A5R, B4, B5, B5R,
Envelope (COM10, Monarch, DL, ISO-C5)
Custom size Min. 95.0 x 148.0mm up tp 297.0 x 431.8mmPaper Cassette:
Standard size: A3, A4, A4R, A5R, B4, B5, B5R -
Supported Media WeightsMulti-purpose tray: 60 to 157 gsm
Paper Cassettes: 64 to 90 gsm -
Warm-up Time
From Power On: 13 Seconds or Less*
* Time from device power-on, until copy ready (not print reservation)
Quick start mode: N/A
From Sleep Mode: 4.3 Seconds or Less
-
Dimensions (W x D x H)627 x 589 x 502 mm
-
Installation Space (W x D)1065 x 1285 mm
-
WeightApprox. 32.3 kg including toner
Print Specifications
-
Print Speed1-sided : Up to 24 ppm (A4), Up to 12 ppm (A3), Up to 11 ppm (A4R)
-
Print Resolution (dpi)Up to 1,200 x 1,200
-
Page Description LanguagesStandard: UFRII
-
Double-Sided PrintingYes
-
Print FeaturesWatermark, Header/Footer, Page Layout, Mixed Paper Sizes/Orientations,
Toner Reduction, Poster Printing, Print Date -
Operating Systems
UFRII: Windows®8.1 / Windows®10 / Windows®11 / Windows®Server2012 / Windows®Server2012 R2 / Windows®Server2016 / Windows®Server2019 / Windows®Server2022
As of Nov 2022
Copy Specifications
-
Copy Speed1-sided : Up to 24 ppm (A4), Up to 12 ppm (A3), Up to 11 ppm (A4R)
-
First-Copy-Out TimePlaten: Approx. 7.4 seconds or less
-
Copy Resolution (dpi)600x 600
-
Multiple Copiesup to 999 copies
-
Copy DensityAutomatic or Manual (9 Levels)
-
Magnification25% – 400% (1% Increments)
-
Preset Reductions25%, 50%, 70%, 100%, 141%, 200%, 400%
-
Preset Enlargements25%, 50%, 70%, 100%, 141%, 200%, 400%
-
Basic Copy FeaturesPreset R/E Ratios by Area, Two-Sided, Density Adjustment, Original Type Selection, Interrupt Mode, Book to Two Pages, Two-sided Original, Sort, Job Build, N on 1, Different Size Originals, Sharpness, Erase Frame, Copy ID Card, Skip Blank Pages, Free Size Original, Color Mode, Reserved copy, Copy Sample
Scan Specifications
-
TypeStandard Platen Cover
-
Pull Scan SpecificationsScanGear MF. For both TWAIN and WIA
Windows®8.1/ Windows®10/Windows®11
macOS (10.12 or later)* As of Nov 2022 -
Acceptable Originals/WeightsPlaten: Sheet, Book
-
Supported Media SizesPlaten max. scanning size: 297.0 x 432.0 mm
-
Scan MethodPush Scan, Pull Scan
-
Double-Sided ScanningNo
Fax Specifications
-
Modem SpeedStandard: USB Memory
